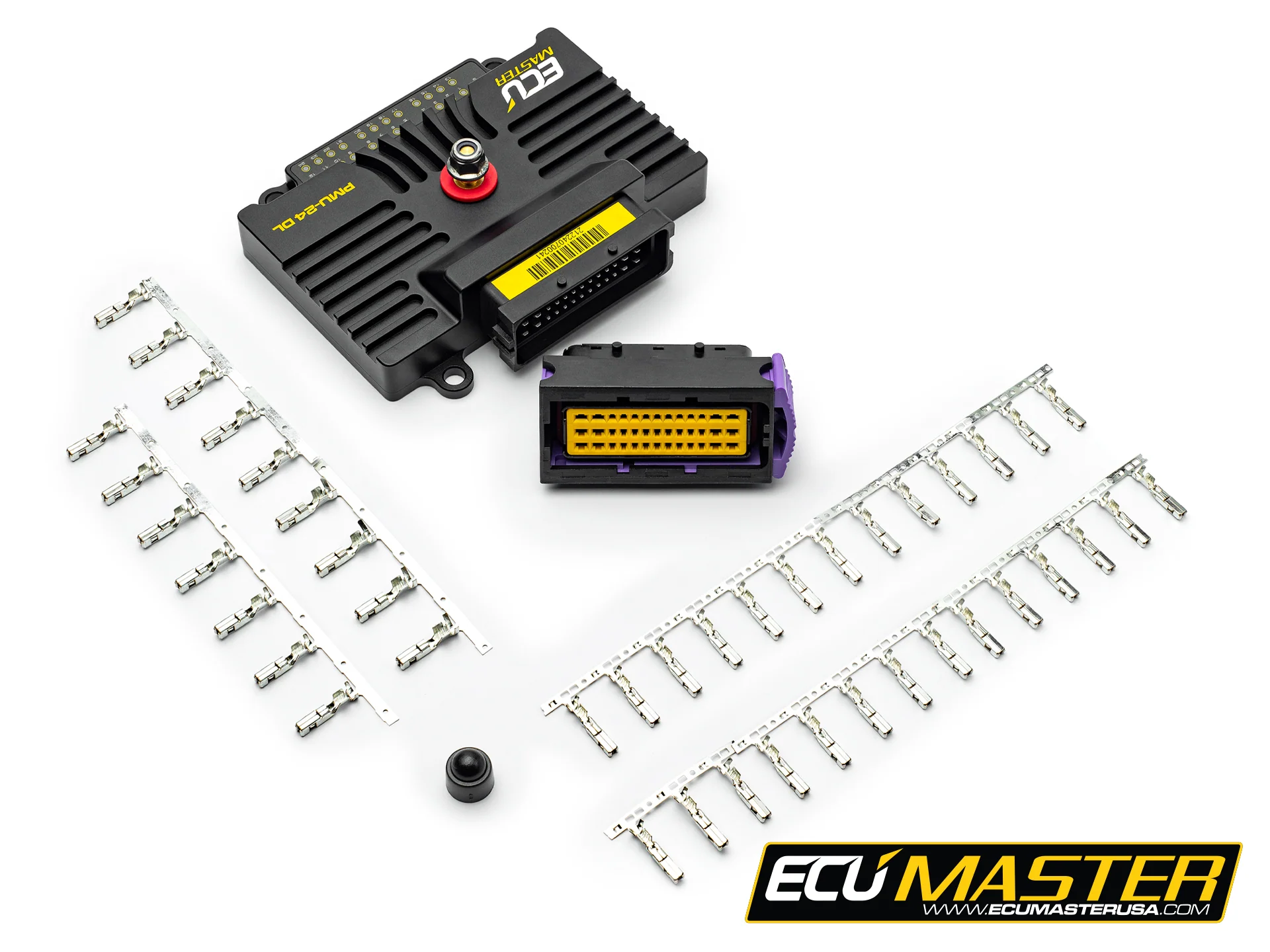

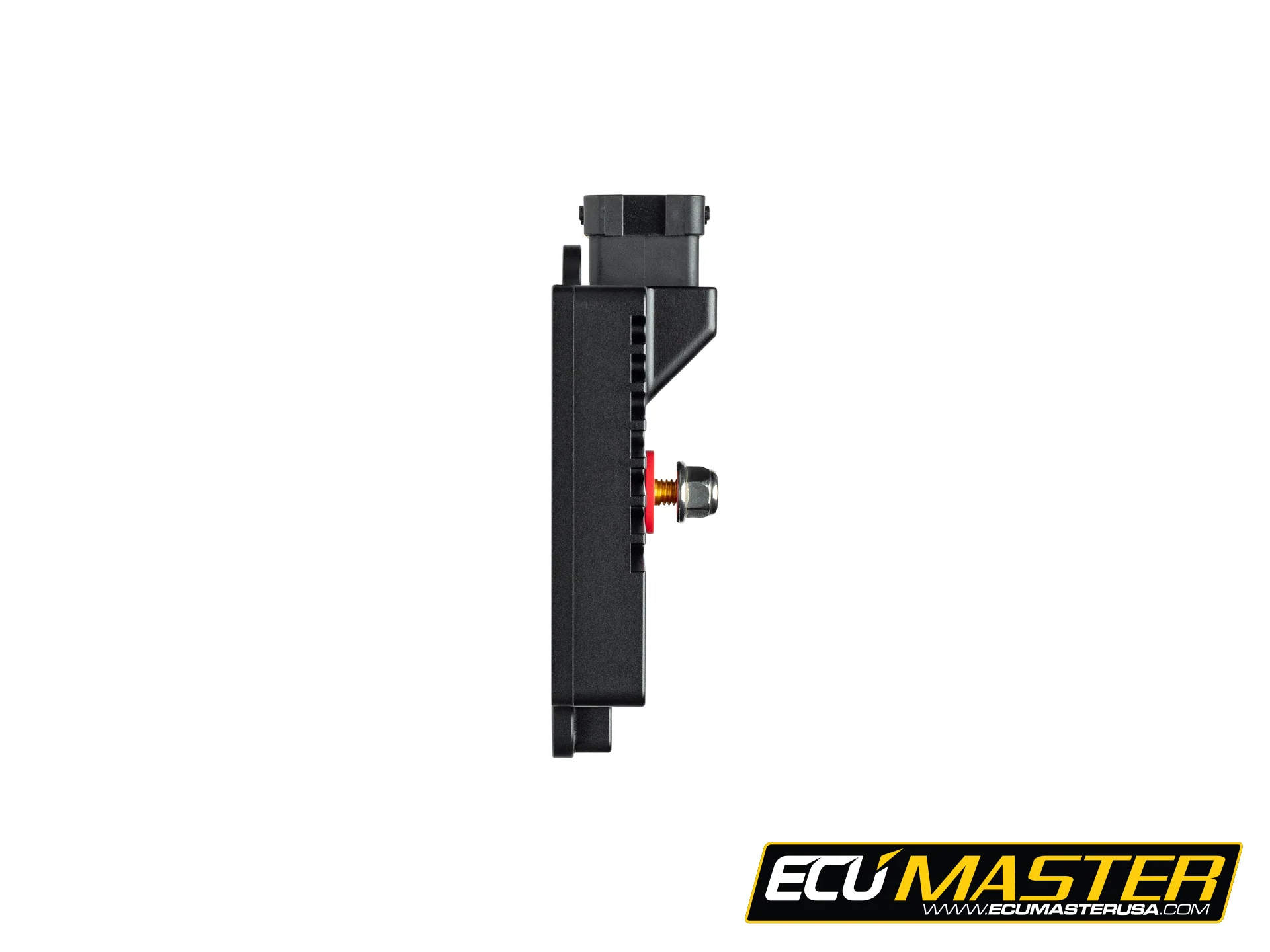

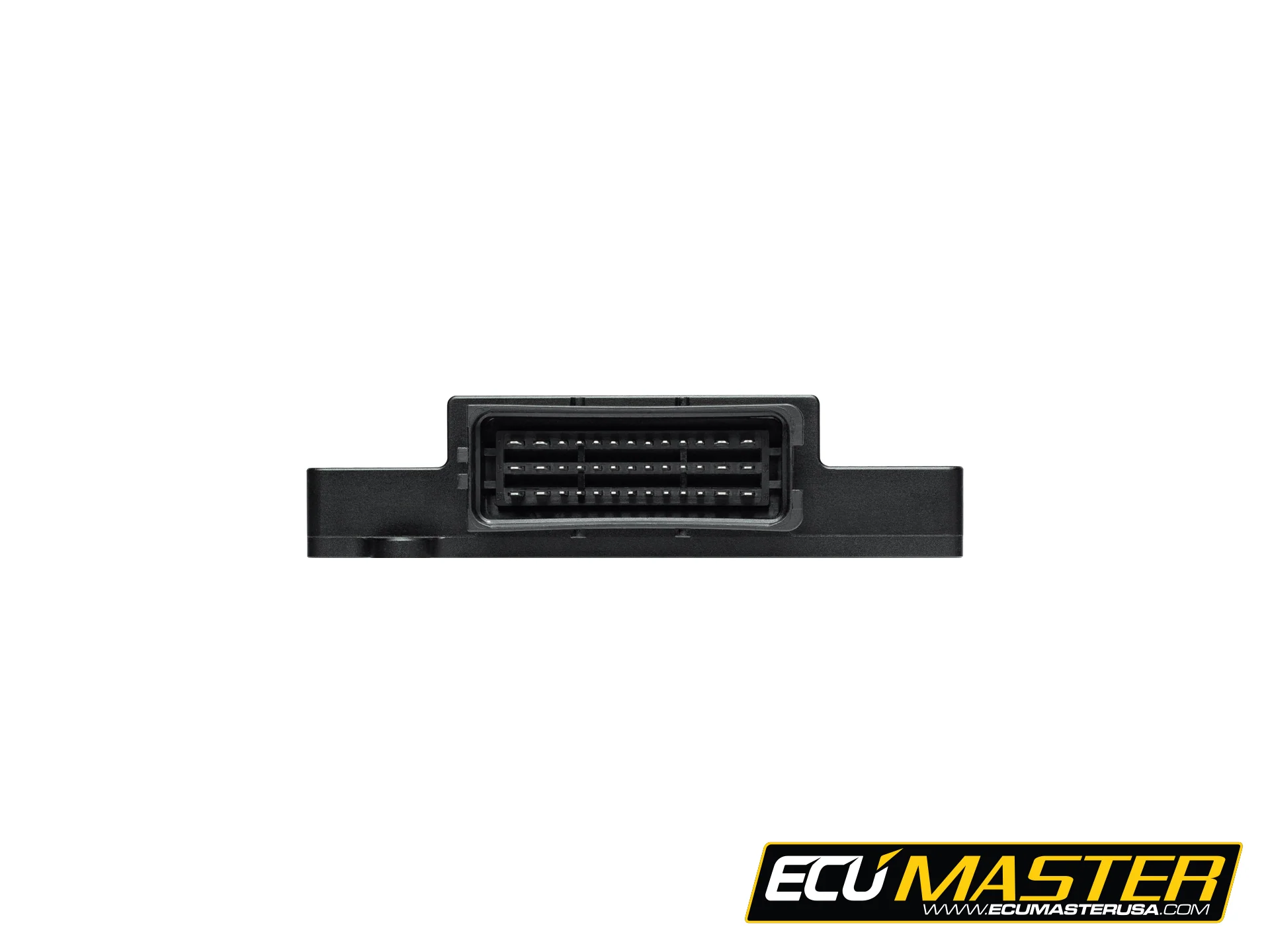

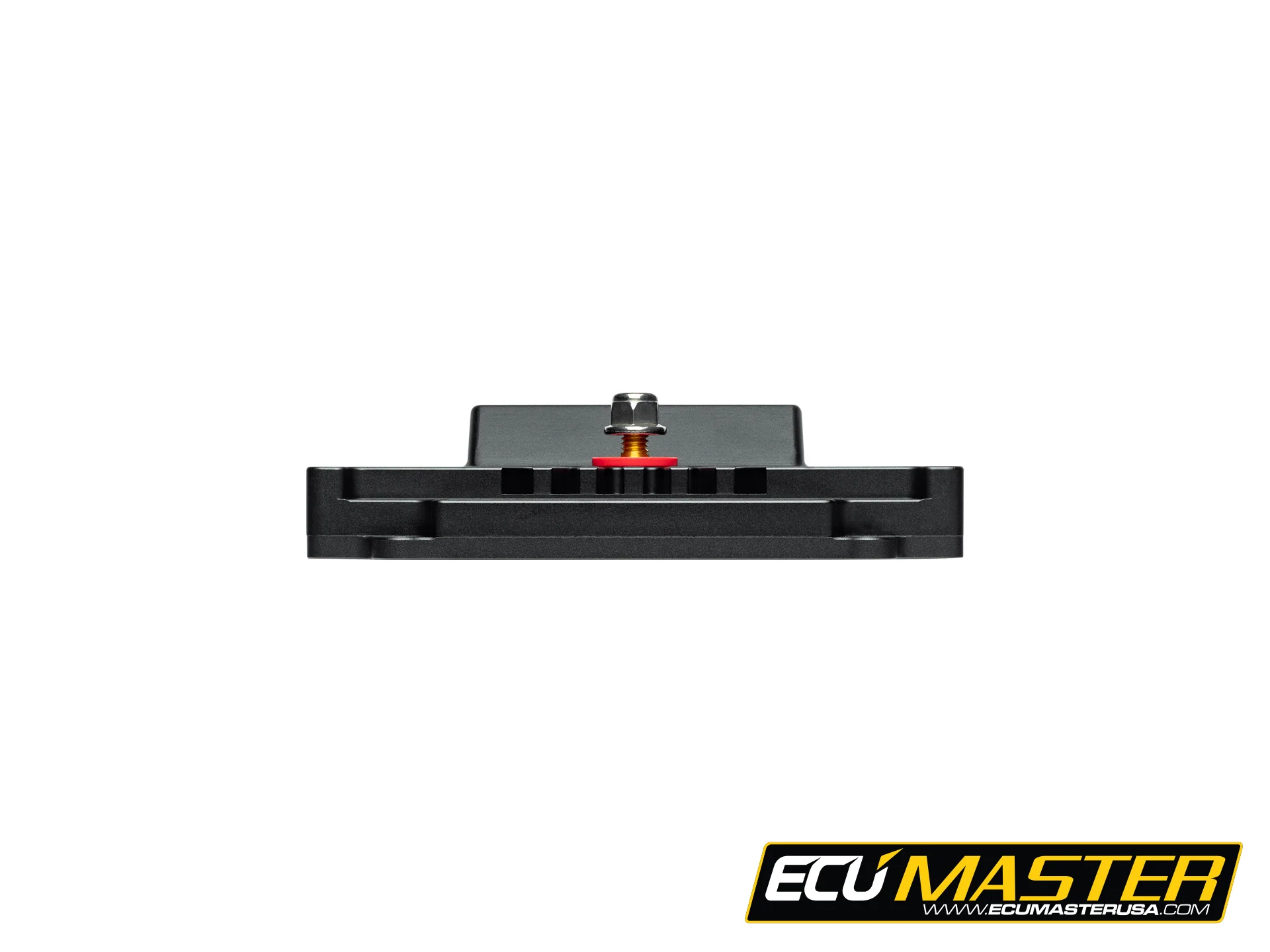

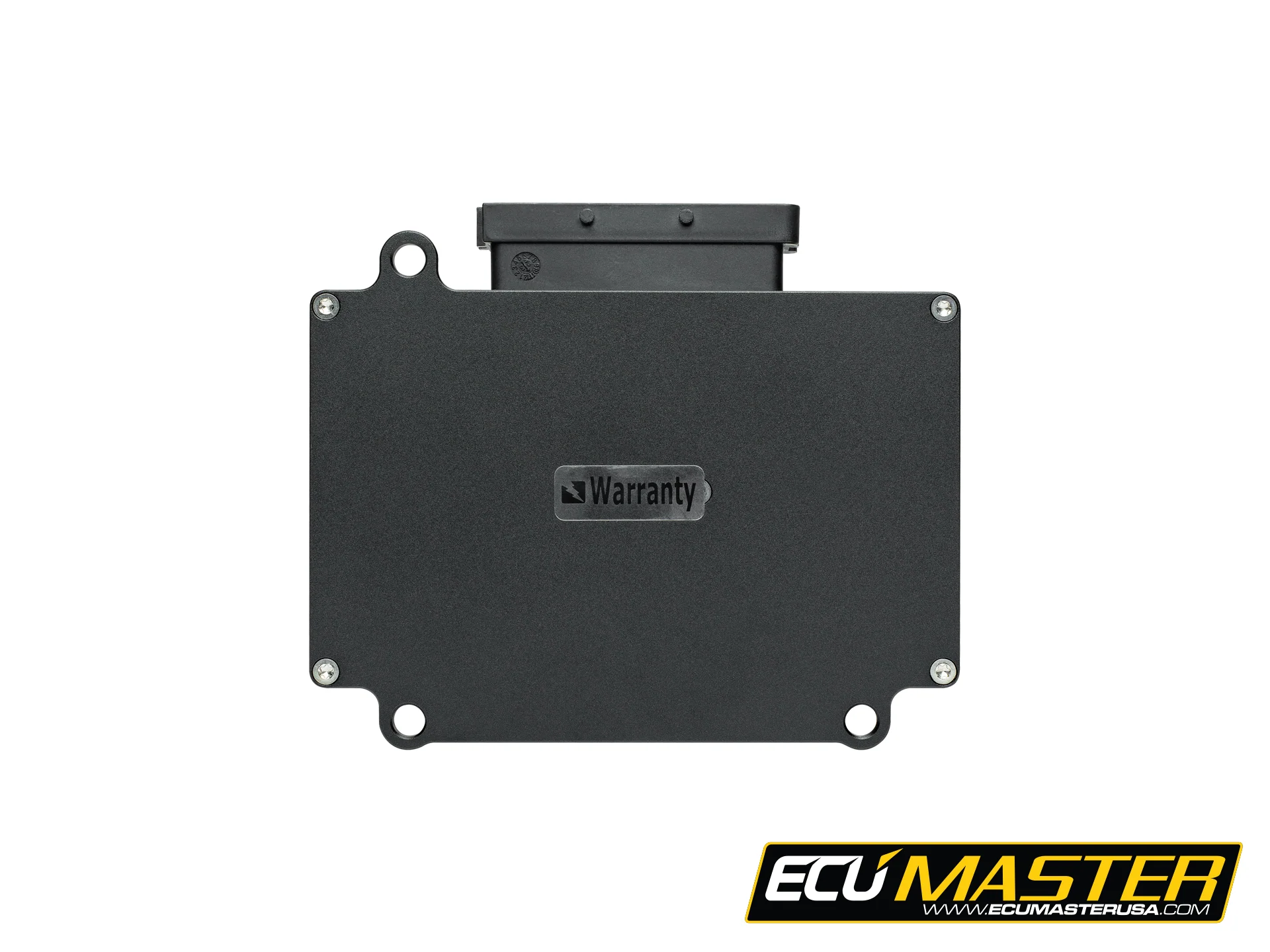

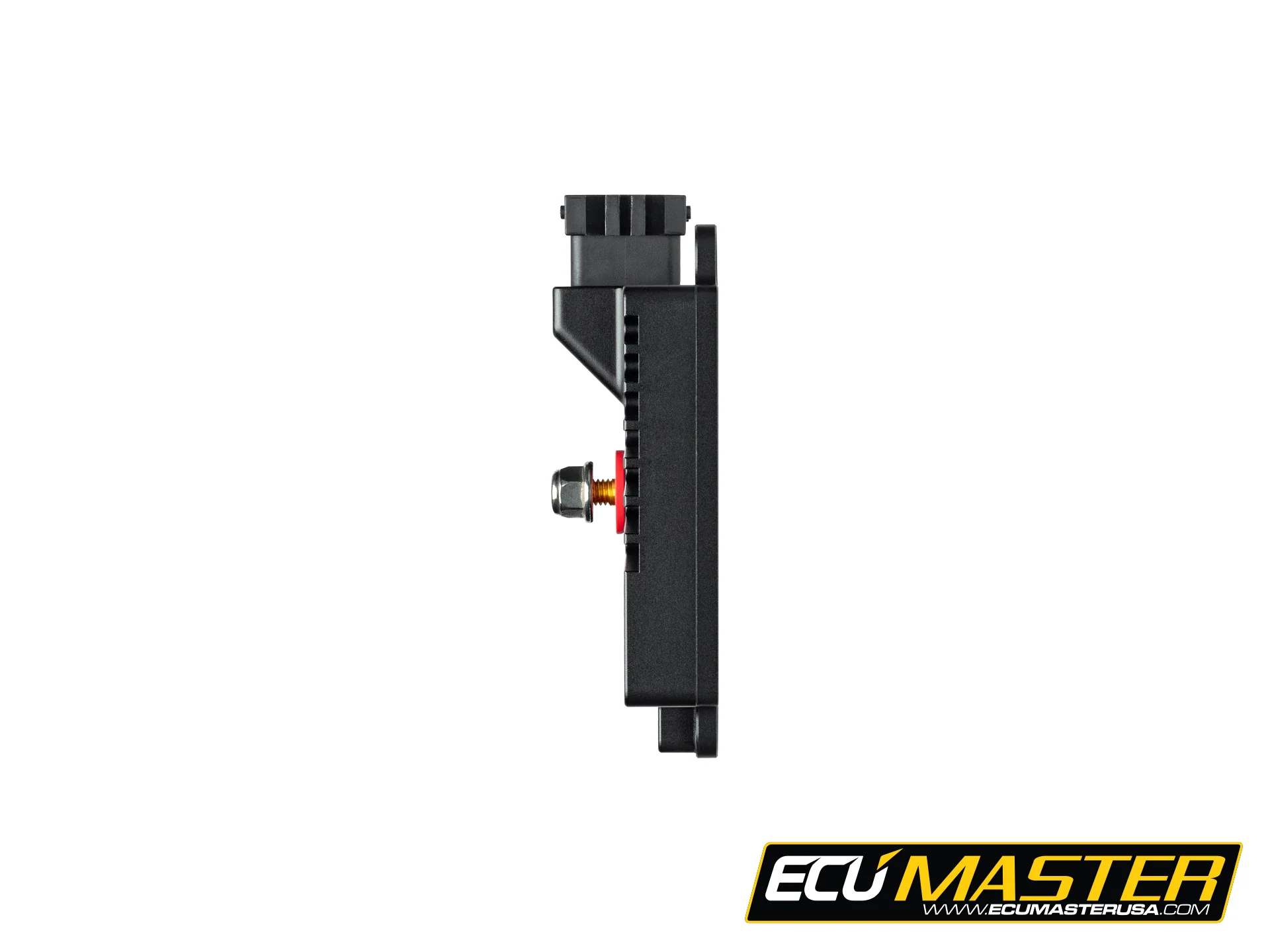

ECUMaster PMU-24 DL
PMU24-DL Power Management Unit w/Datalogging
The PMU-24 DL is a new and enhanced Power Management Unit featuring all of the amazing functionality of the PMU-16, now with 24 high-side outputs and internal data logging memory as standard. Through clever engineering, 8 of the analog inputs may be utilized as 7 amp high side outputs. As standard with the PMU-16 series, all output states, voltage, and current information are able to be transmitted via CAN bus to a dash display to inform the driver of potential problems. In addition, all internally logged data can be downloaded from the device for later analysis.
Key Features:
- 170 Amp continuous current capacity.
- Operating voltage: 6-22V (immunity to transients according to ISO 7637)
- Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
- 10x 25 Amp high-side power outputs (PWM capable).
- 6x 15 Amp high-side power outputs.
- 8x 7 Amp high-side power outputs.
- Up to 16 analog inputs.
- 24x tricolor LED for each power output state.
- 2x CAN 2.0 A/B.256 MB data logger memory.
- Up to 500 Hz logging frequency.
- Real-time clock for data stamping.
- 3D accelerometer/gyroscope.
- Built-in “inertia switch” in case of an accident.
- Easy access to CAN-bus data (imports and exports).
- Internal data processing using logical functions, numbers, timers, and tables.
- Custom PID controllers.
- Fully customizable ”logic” for each output.
- Flexible and intuitive client software.
Broad CAN Integration:
All PMUs support CAN integration with a wide range of ECUs, PDMs, and other devices. Software downloads include preconfigured CANX templates for many popular manufacturers, including:
- Abit M11 Korvet
- Adaptronic
- AEM
- Bosch Motorsport MS 4 Sport
- DTA S Series
- EFI Technology Euro Series
- Emerald K3/K6
- Emtron
- FuelTech FTCAN 2.0
- GET H4FSAE
- Haltech
- Holley EFI*
- Hondata
- KMS MD35
- Link ECU
- MaxxECU
- MBE Systems
- Megasquirt 2 & 3
- Microtech
- MoTeC M1
- MoTeC M800
- MoTeC M84
- MoTeC MDC/SDC
- MoTeC PDM
- Motorsport Electronics Gen 1 & 2
- Pectel SQ6
- ProEFI
- SCS Delta D800
- Syvecs / Life Racing
- Trijekt
- Vi-PEC
In addition to the included templates, PMU features fully user-configurable CAN communications and support DBC file imports. This allows integration with virtually any CAN-enabled device for which a DBC file or CAN message documentation is available.
*See FAQ, Section 5 for Holley EFI setup notes.
Additional Documents
PMU-24 DL Pinout Simplified
PMU-24 DL Pinout Advanced
PMU User Manual 92.0
PMU Comparison Chart
PMU-24 DL CAD Data
Drawings - PMU-24 DL
